Extract. Tree. Auto Link. — Complete SoC Integration Solution with Visual Analysis.

Target Users: IC Engineers working with complex multi-IP designs

Smart Verilog VisualisationLoad and analyse Verilog designs with smart visualisation.

Efficient Code NavigationNavigate code efficiently with integrated calling and definition tracking.

Automated Issue DetectionIdentify connection issues with automated floating port detection.

Intelligent Connection RepairFix connections intelligently with cross-hierarchy instance linking.

Interactive Clock/Reset ViewsVisualise clock/reset trees with interactive presentation-ready schematics.

Map Connection Analysis & Visualisation

Smartly detect, visualise, and repair connection issues across your design with one-click intelligent repair.

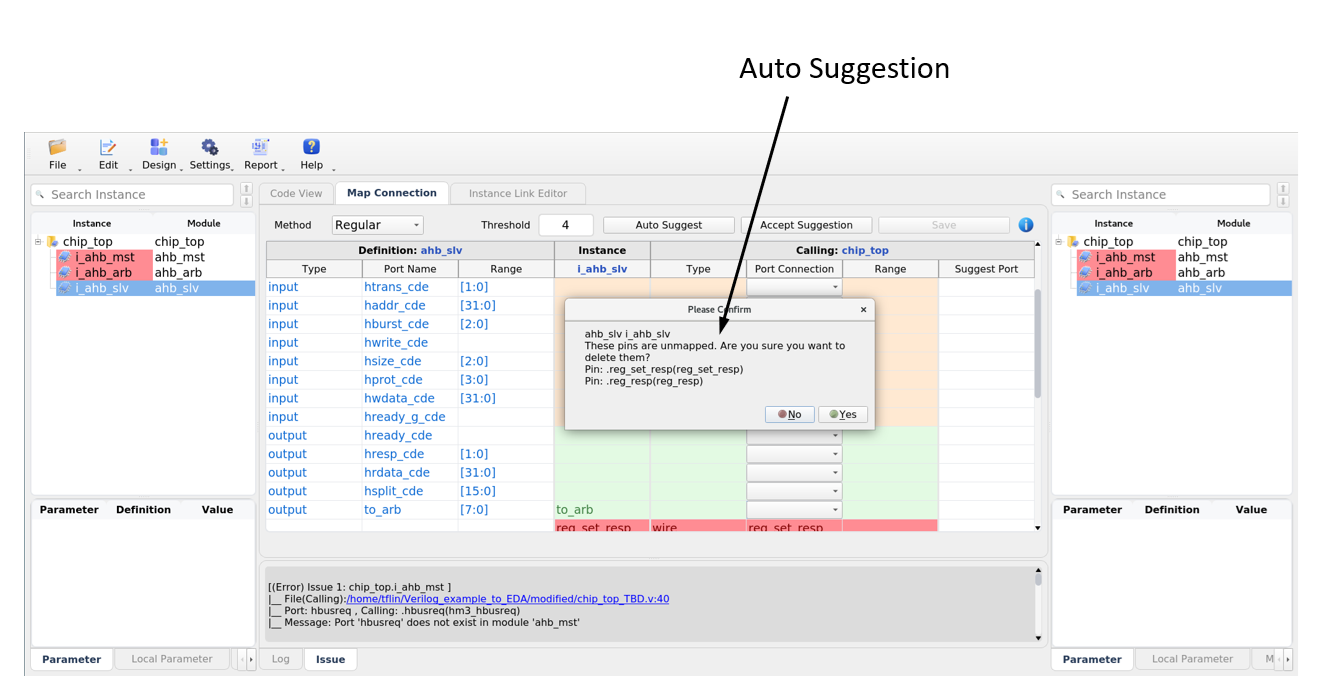

Instantly proposes corrections for detected issues, mapping the full path from Definition to Instance, Calling Port Definition, and Suggest Port.

Automatically applies validated corrections with one click, reducing debugging time from hours to seconds.

Empowers custom fixes when automatic suggestions aren't enough, giving engineers full control over manual corrections.

Revolutionary connection management for complex SoC hierarchies.

Instant Port Linking
Instantly connect ports between any two instances across the hierarchy.
Smart Auto-Routing
Auto-completes intermediate connecting with intelligent path analysis.
Cross-Hierarchy Support
Supports cross-hierarchy connections and smart routing across multiple design levels.
Auto Repair

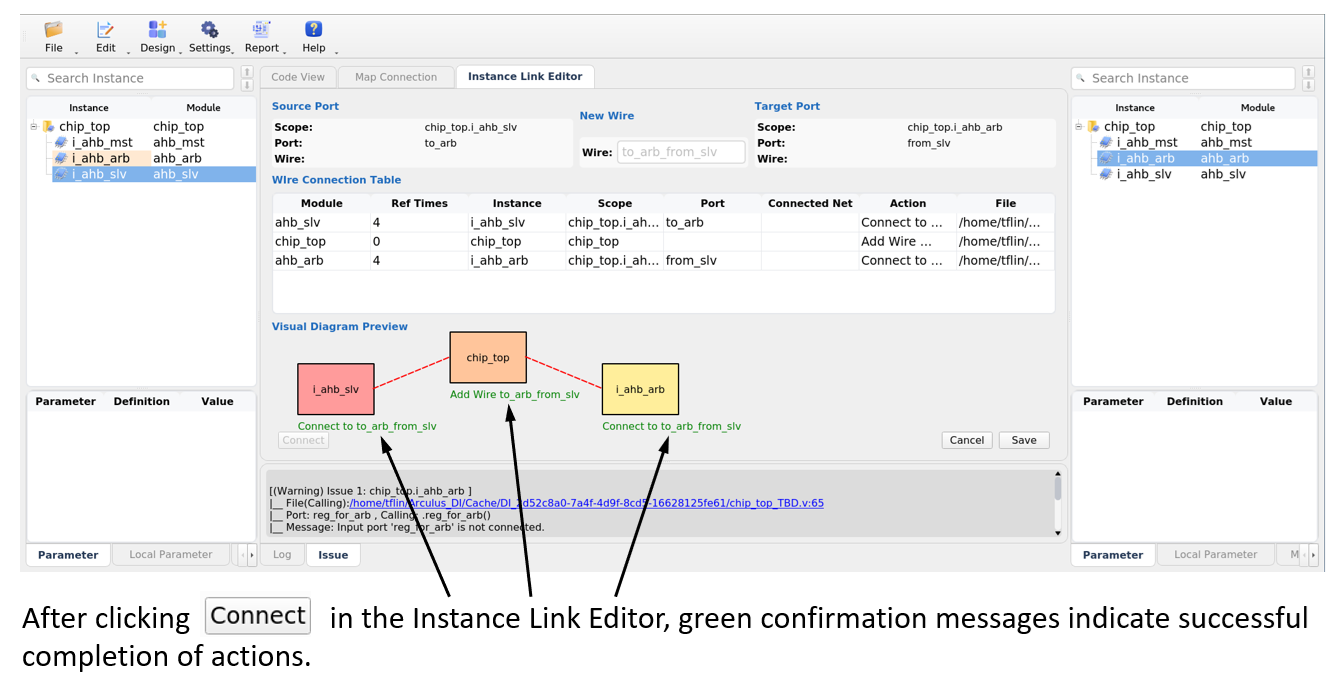

Detects and repairs broken links automatically. After clicking Connect, green confirmation messages indicate successful completion.

Premium Feature

What We Deliver

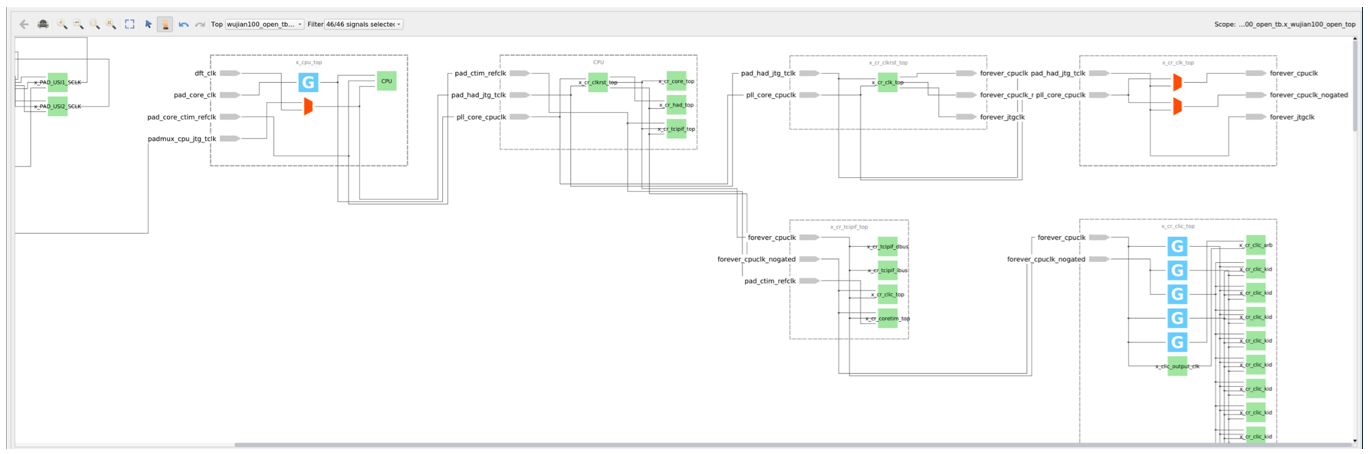

Auto-generate clock/reset tree schematics directly from Verilog code.

RTL tree viewing, signal path tracing, zoom controls, line manipulation, and PDF export.

Right-click on any node in the schematics to instantly open the corresponding code location for detailed inspection.
